nVidia Quadro M4000 8GB 256-bit GDDR5 PCIe3.0 x16

(4x DisplayPort 1.2)

Get real interactive expression with NVIDIA® Quadro® the world’s most powerful workstation graphics. The NVIDIA Quadro M4000 is accelerated by NVIDIA Maxwell™ GPU architecture, letting you easily tackle your most demanding visualization workloads with extreme performance and the flexibility of a single-slot form factor. 8 GB of GDDR5 GPU memory with fast bandwidth allows you to create and render large, complex models and compute massive datasets.

Plus, there’s a new display engine that drives up to four 4K resolution displays natively with DisplayPort 1.2 support for ultra-high resolutions like 4096 x 2160 @ 60 Hz with 30-bit colour. Pair up two or more outputs to drive displays greater than 4K, and take advantage of NVIDIA Quadro Sync support to frame-lock up to 16 4K displays in a single system. Quadro cards are certified with a broad range of sophisticated professional applications, tested by leading workstation manufacturers, and backed by a global team of support specialists. This gives you the peace of mind to focus on doing your best work. Whether you’re developing revolutionary products or telling spectacularly vivid visual stories, Quadro gives you the performance to do it brilliantly

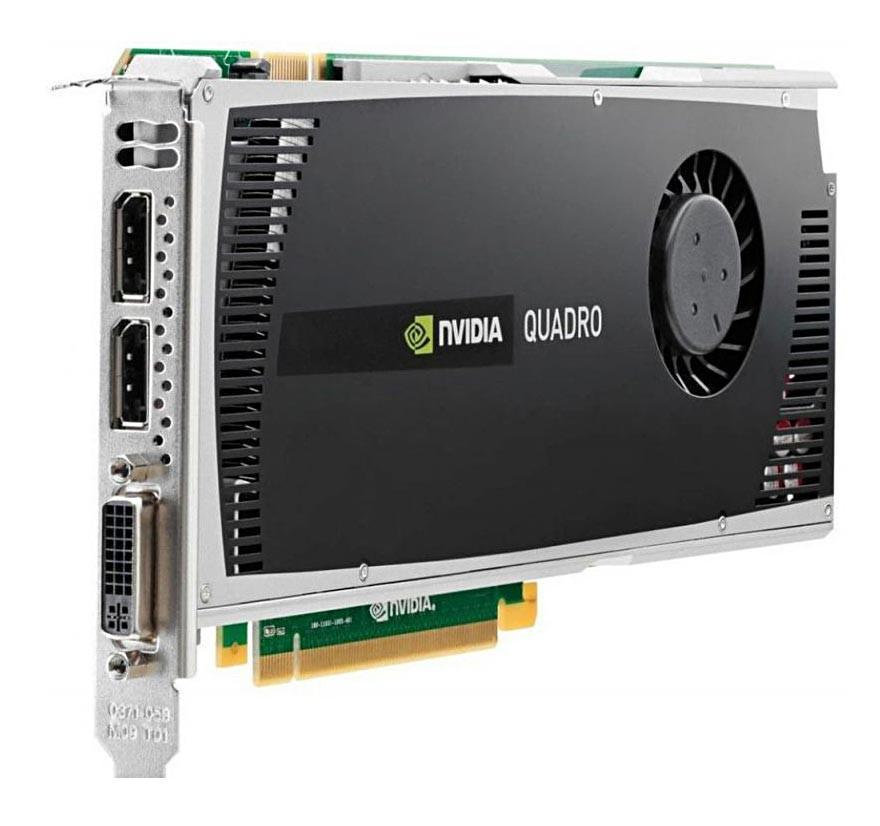

nVidia Quadro 4000 2GB 256-bit GDDR5 PCIe2.0 x16

(2x DisplayPort 1.2 - 1xDVI)

The nVidia Quadro 4000 was an enthusiast-class professional graphics card by NVIDIA, launched in November 2010. Built on the 40 nm process, and based on the GF100 graphics processor, in its GF100-825-A3 variant, the card supports DirectX 12. The GF100 graphics processor is a large chip with a die area of 529 mm² and 3,100 million transistors. Unlike the fully unlocked GeForce GTX 480 Core 512, which uses the same GPU but has all 512 shaders enabled, NVIDIA has disabled some shading units on the Quadro 4000 to reach the product's target shader count. It features 256 shading units, 32 texture mapping units, and 32 ROPs. NVIDIA has paired 2,048 MB GDDR5 memory with the Quadro 4000, which are connected using a 256-bit memory interface. The GPU is operating at a frequency of 475 MHz, memory is running at 702 MHz (2.8 Gbps effective).
Being a single-slot card, the NVIDIA Quadro 4000 draws power from 1x 6-pin power connector, with power draw rated at 142 W maximum. Display outputs include: 1x DVI, 2x DisplayPort. Quadro 4000 is connected to the rest of the system using a PCI-Express 2.0 x16 interface. The card measures 241 mm in length, 111 mm in width, and features a single-slot cooling solution. Its price at launch was 1199 US Dollars.

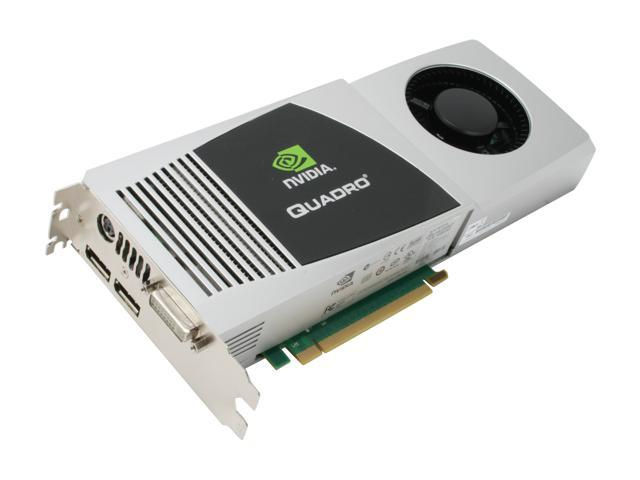

nVidia Quadro FX4800 2GB 256-bit GDDR3 PCIe2.0 x16

(2x DisplayPort 1.2 - 1xDVI 1XANALOG)

The Quadro FX 4800 was an enthusiast-class professional graphics card by NVIDIA, launched in November 2008. Built on the 55 nm process, and based on the GT200B graphics processor, the card supports DirectX 11.1. Even though it supports DirectX 11, the feature level is only 10_0, which can be problematic with many DirectX 11 & DirectX 12 titles. The GT200B graphics processor is a large chip with a die area of 470 mm² and 1,400 million transistors. Unlike the fully unlocked GeForce GTX 275, which uses the same GPU but has all 240 shaders enabled, NVIDIA has disabled some shading units on the Quadro FX 4800 to reach the product's target shader count. It features 192 shading units, 64 texture mapping units, and 24 ROPs. NVIDIA has paired 1,536 MB GDDR3 memory with the Quadro FX 4800, which are connected using a 384-bit memory interface. The GPU is operating at a frequency of 602 MHz, memory is running at 800 MHz.
Being a dual-slot card, the NVIDIA Quadro FX 4800 draws power from 1x 6-pin power connector, with power draw rated at 150 W maximum. Display outputs include: 1x DVI, 2x DisplayPort, 1x S-Video. Quadro FX 4800 is connected to the rest of the system using a PCI-Express 2.0 x16 interface. The card measures 267 mm in length, 111 mm in width, and features a dual-slot cooling solution. Its price at launch was 1799 US Dollars.

NVIDIA Quadro M4000 8GB CAD880

NVIDIA Quadro 4000 2GB CAD360

NVIDIA Quadro FX4800 2GB CAD115
